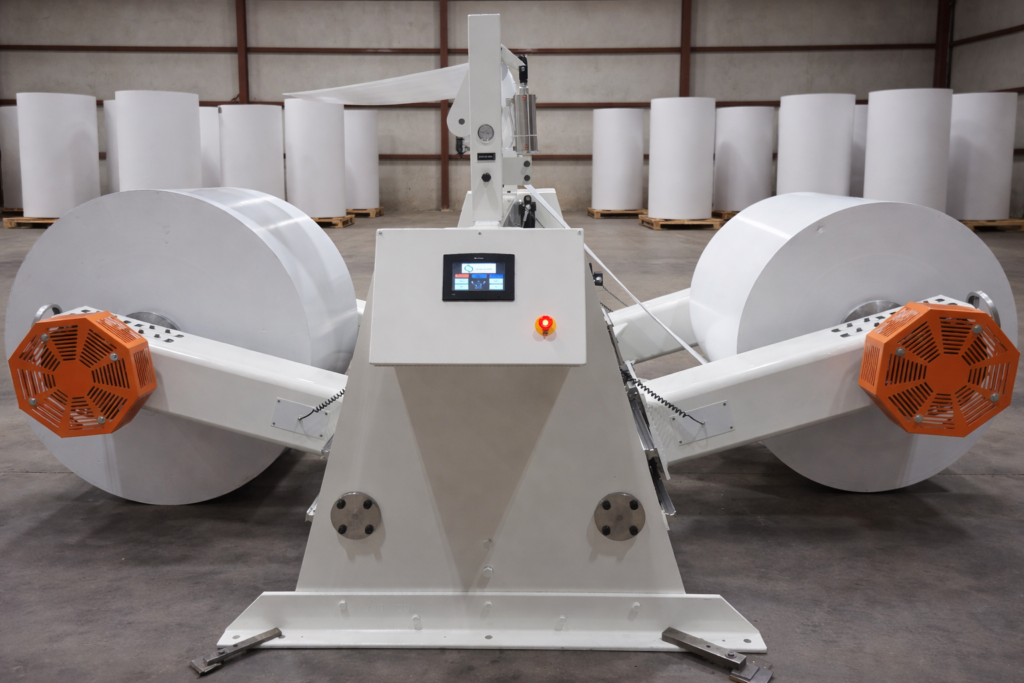

The MAXSON Dual Position Shaftless Rollstand enhances any sheeting and converting operation by offering the latest in roll handling technology and efficiencies.

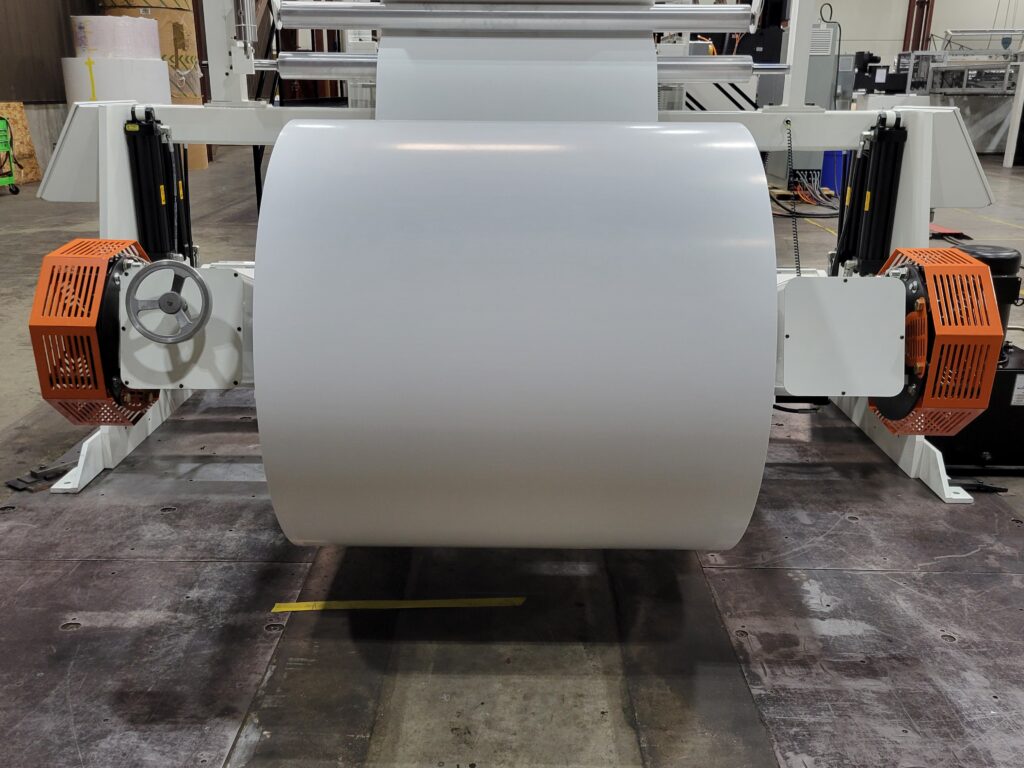

The Dual Position Shaftless Roll Stand includes two unwind positions. Each position is outfitted with hydraulically driven and independently governed arms, skew adjustment, an operator control station, a manual side loading roll trolley with track, automatic tension control, “low roll diameter” detection and pneumatic disc brake.
Benefits to Your Operation
- Eliminate the need for overhead hoists during roll changes
- Reduce operator workload with automated tension control
- Keep production running by preparing the next roll while one is in use.
- Brakes on both arms enhances even web tension
- Automatic machine stop at preset roll diameter to prevent downtime
- Ergonomically designed roll tracks for safer, easier handling
- Fast roll changeover in just 3–4 minutes
Key Features:
High Productivity & Flexibility
- Handles roll diameters from 20″ to 72″ and 84″
- Supports rolls up to 7,000 lbs
- All Core Diameters accommodated
- Skew adjustment to counter “baggy” edged rolls.

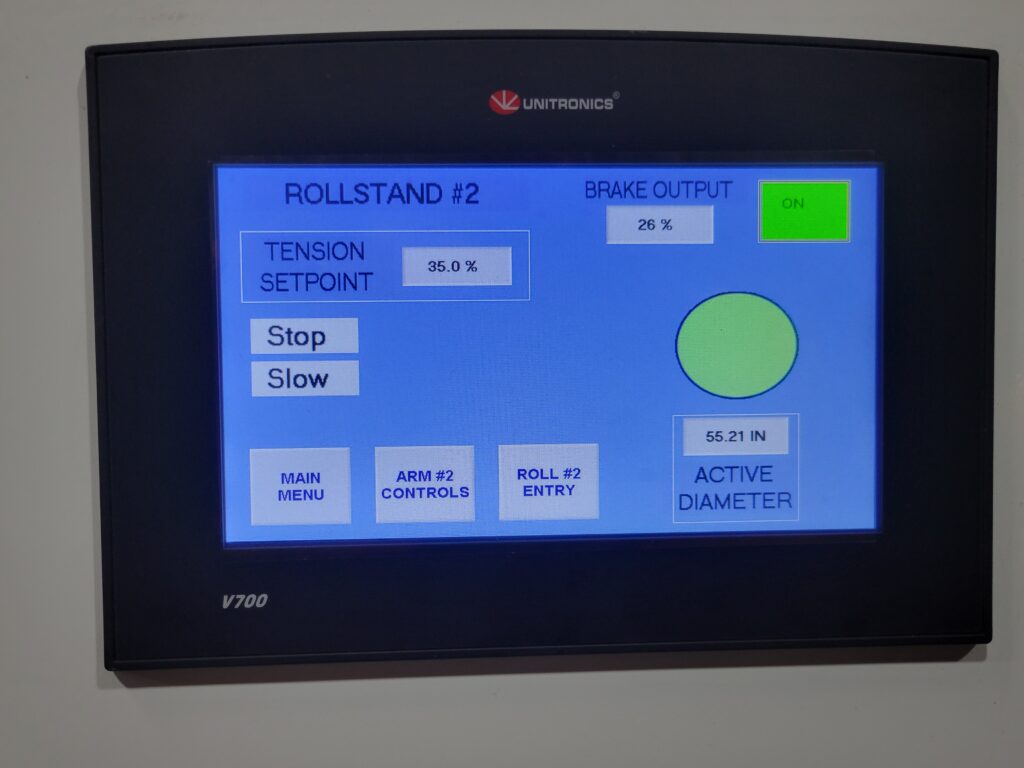

- Easy to train and use touchscreen HMI
- Independent arms raise, lower, and clamp rolls with precision
- Tension system automatically adjusts as roll diameter decreases
- Built-in low roll detection slows and stops the line before roll depletion
Available Options
- 72″ or 84″ maximum roll diameters
- Automatic Splicing – For non-stop operation
- Single or Dual Roll Handling Tracks – Dependent on your Plant layout and Operation
